一 、產品簡介：
化工流程中強制循環、海水養殖
、城市煤氣工程
、水處理系統
。此系列泵能夠經濟有效地輸送大流量
、低揚程的、均勻的或含有一定顆粒的
，化學中性的或有腐蝕性的液體（強腐蝕性液體需說明）。 泵效率高
、能砂耗小
；泵在整個性能范圍內的能耗均勻
，可以在閉閥下啟動，而電機不至過載
；過流截面大
、不易堵塞；結構緊固
、壽命長。
結構
THW型化工混流泵為臥式可拉出式結構
。在檢查或拆卸葉輪
、軸封時，毋須將與泵體相連接的管路拆開
。泵軸裝有防護軸套，軸承用稀油潤滑
，軸承箱里的泊位
，可由“恒位”油杯來控制
。泵體上鑄有支腳
，可承受來自管路的任何載荷，并直接傳給基礎
。因此，轉子不會因泵承受載荷而產生彎曲
，從而保證了軸承具有最佳的使用壽命
。泵上還配備完整的排氣裝置
，以供吸入管路排氣。
軸承 采用球軸承
。
軸封 采用填料密封或雙端面機械密封
。
傳動 從驅動端看泵，為順時針方向旋轉
。

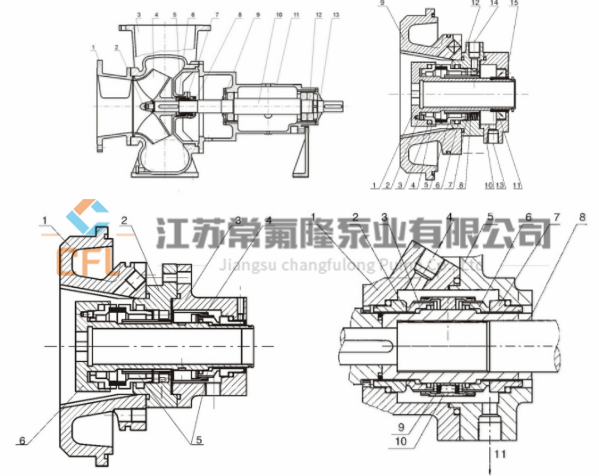

二、結構圖：
三：性能參數表：
| 型號 | 比轉速 | 轉速 r/min | 流量 m3/h | 揚程 M | 效率 % | 軸功率Kw | 配用電機 | 汽蝕余量 |
| r = 1.00 Specific gravity | r =1.35 Specific gravity | r =1.84 Specific gravity |
| 200-200-250 | 217 | 1450 | 300 | 13.5 | 79 | 13.97 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 | 4 |
| 240 | 1450 | 270 | 11 | 78 | 10.38 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 | 3.9 |
| 272 | 1450 | 240 | 8.6 | 75 | 7.5 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | 3.8 |
| 200-250-250 | 332 | 1450 | 530 | 11.2 | 80 | 20.22 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | 5.5 |
| 351 | 1450 | 500 | 10 | 79 | 17.25 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | 3.9 |
| 380 | 1450 | 460 | 8.5 | 78 | 13.66 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 | 3.8 |
| 425 | 1450 | 430 | 7 | 75 | 10.94 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 | 5.5 |
| 225-250-300 | 294 | 1450 | 700 | 15.8 | 80 | 37.67 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 5 |
| 318 | 1450 | 650 | 13.6 | 79 | 30.49 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 4.9 |
| 353 | 1450 | 625 | 11.5 | 78 | 25.11 | Y200L-4/30 | Y225S-4/37 | Y250M-4/55 | 4.8 |
| 391 | 1450 | 575 | 9.5 | 75 | 19.85 | Y180L-4/22 | Y225S-4/37 | Y225M-4/45 | 6 |
| 250-250-300 | 311 | 1450 | 650 | 14 | 74 | 33.51 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 6 |
| 339 | 1450 | 600 | 11.8 | 73 | 26.43 | Y200L-4/30 | Y225M-4/45 | Y250M-4/55 | 5.8 |
| 366 | 1450 | 552 | 10.1 | 72 | 21.1 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | 5.4 |
| 387 | 1450 | 520 | 9 | 70 | 18.22 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | 7 |
| 300-250-300 | 264 | 1450 | 800 | 20 | 75 | 58.13 | Y280S-4/75 | Y280M-4/90 | Y315M-4/132 | 6 |
| 287 | 1450 | 740 | 17 | 74 | 46.33 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 | 5.8 |
| 310 | 1450 | 680 | 14.5 | 72 | 37.32 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 5.4 |
| 330 | 1450 | 640 | 12.8 | 70 | 31.89 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 | 7 |
| 250-300-350 | 315 | 1450 | 1100 | 19.5 | 80 | 73.06 | Y2B0M-4/90 | Y315S-4/110 | Y315L1-4/160 | 6.4 |
| 340 | 1450 | 1040 | 17 | 80 | 60.22 | Y2B0S-4/75 | Y280M-4/90 | Y315M-4/132 | 6 |
| 360 | 1450 | 950 | 14.8 | 79 | 48.5 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 | 5.8 |
| 406 | 1450 | 880 | 12 | 77 | 37.37 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 | 8 |
| 328 | 980 | 750 | 8.5 | 75 | 23.16 | Y225M-6/30 | Y250M-6/37 | Y280M-6/55 | 5 |
| 345 | 980 | 700 | 7.6 | 74,5 | 19.46 | Y200L2-6/22 | Y225M-6/30 | Y280S-6/45 | 4.8 |
| 型號 | 比轉速 | 轉速 r/min | 流量m3/h | 揚程M | 效率% | 軸功率Kw | 配用電機 | 汽蝕余量 |
| r = 1.00Specific gravity | r =1.35Specific gravity | r =1.84Specific gravity |
| 250-300-350 | 373 | 980 | 650 | 6.5 | 74 | 15.56 | Y180L1-6/18.5 | Y225M-6/30 | Y250M-6/37 | 4.6 |
| 418 | 980 | 600 | 5.3 | 72 | 12,04 | Y180L-6/15 | Y200L2-6/22 | Y225M-6/30 | 6 |
| 300-300-350 | 254 | 980 | 800 | 12.5 | 83 | 32.83 | Y250M-6/37 | Y280M-6/55 | Y310S-6/75 | 6 |
| 275 | 980 | 736 | 10.6 | 82 | 25.93 | Y225M-6/30 | Y280S-6/45 | Y280M-6/55 | 5.8 |
| 299 | 980 | 680 | 9 | 81 | 20,59 | Y225M-6/30 | Y250M-6/37 | Y280S-6/45 | 5.6 |
| 317 | 980 | 640 | 8 | 78 | 17.89 | Y200L2-6/22 | Y225M-6/30 | Y250M-6/37 | 7 |
| 300-350-400 | 329 | 980 | 1300 | 12.2 | 80 | 54.02 | Y310S-6/75 | Y315M1-6/90 | Y315M2-6/110 | 4.4 |
| 342 | 980 | 1200 | 11 | 79 | 45.53 | Y280M-6/55 | Y310S-6/75 | Y315M1-6/90 | 4 |
| 389 | 980 | 1150 | 9 | 76 | 37.11 | Y280S-6/45 | Y280M-6/55 | Y310S-6/75 | 4 |
| 440 | 980 | 1050 | 7.2 | 74 | 27,84 | Y225M-6/30 | Y280S-6/45 | Y280M-6/55 | 6 |
| 350-350-400 | 259 | 980 | 1100 | 15 | 72 | 62.45 | Y310S-6/75 | Y315M1-6/90 | Y315M3-6/132 | 5 |
| 282 | 980 | 1012 | 12.7 | 70 | 50.03 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 4.9 |
| 306 | 980 | 935 | 10.8 | 68 | 40.47 | Y280S-6/45 | Y310S-6/75 | Y315M1-6/90 | 4.5 |
| 324 | 980 | 880 | 9.6 | 64 | 35.97 | Y280S-6/45 | Y280M-6/55 | Y310S-6/75 | 4.8 |
| 350-350-450 | 243 | 980 | 1600 | 21 | 83 | 110.31 | Y315M3-6/132 | Y315-6/160 |
| 5.2 |
| 276 | 980 | 1500 | 17 | 82 | 84:74 | Y315M1-6/90 | Y315M3-6/132 |
| 5.3 |
| 322 | 980 | 1450 | 13.5 | 80 | 66.68 | Y310S-6/75 | Y315M2-6/110 | Y315M3-6/132 | 5.5 |
| 356 | 980 | 1300 | 11 | 78 | 49.96 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 7.8 |
| 350-400-450 | 318 | 980 | 2000 | 17 | 83 | 111.63 | Y315M3-6/132 | Y315-6/160 | Y355M3-6/220 | 6 |
| 341 | 980 | 1900 | 15 | 82 | 94.71 | Y315M2-6/110 | Y315-6/160 | Y355M2-6/200 | 5.5 |
| 387 | 980 | 1800 | 12.2 | 80 | 74.8 | Y315M1-6/90 | Y315M3-6/132 | Y315-6/160 | 5.2 |
| 517 | 980 | 1700 | 8 | 76 | 48.76 | Y280M-6/55 | Y310S-6/75 | Y315M2-6/110 | 8 |
| 320 | 740 | 1500 | 9.6 | 81 | 48.44 | Y315S-8/55 | Y315M1-8/75 | Y315M3-8/110 | 4 |
| 357 | 740 | 1450 | 8.1 | 80 | 40.01 | Y280M-8/45 | Y315M1-8/75 | Y315M2-8/90 | 3.9 |
| 384 | 740 | 1350 | 7 | 79 | 32,60 | Y280S-8/37 | Y315S-8/55 | Y315M1-8/75 | 3.6 |
| 431 | 740 | 1250 | 5.7 | 78 | 24.89 | Y250M-8/30 | Y280S-8/37 | Y315S-8/55 | 5.8 |
| 400-400-550 | 240 | 980 | 2400 | 28 | 86 | 212.93 | Y355L-6/250 |
|
| 7 |
| 281 | 980 | 2300 | 22 | 86 | 160.33 | Y355S3-6/185 | Y355L-6/250 |
| 7 |
| 313 | 980 | 2100 | 18 | 85 | 121.18 | Y315M3-6/132 | Y355S3-6/185 | Y355L-6/250 | 7 |
| 359 | 980 | 2000 | 14.5 | 84 | 94.08 | Y315M2-6/110 | Y315-6/160 | Y355S3-6/185 | 9.8 |
| 型號 | 比轉速 | 轉速 r/min | 流量m3/h | 揚程M | 效率% | 軸功率Kw | 配用電機 | 汽蝕余量 |
| r = 1.00Specific gravity | r =1.35Specific gravity | r =1.84Specific gravity |
| 400-400-550 | 240 | 740 | 1812 | 16 | 85 | 92.95 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 5 |
| 282 | 740 | 1737 | 12,5 | 85 | 69,61 | Y315M1-8/75 | Y315M3-8/110 | Y355S4-8/160 | 5 |
| 314 | 740 | 1586 | 10.2 | 83 | 53.11 | Y315M1-B/75 | Y315M2-8/90 | Y315M3-8/110 | 5 |
| 361 | 740 | 1510 | 8.2 | 80 | 42.18 | Y315S-8/55 | Y315M1-8/75 | Y315M2-8/90 | 7 |
| 400-450-550 | 357 | 980 | 3200 | 20 | 86 | 202.79 | Y355L-6/250 |
|
| 8 |
| 374 | 980 | 3000 | 18 | 85 | 173.12 | Y355S4-6/200 | Y355L-6/250 |
| 7.5 |
| 394 | 980 | 2800 | 16 | 84 | 145.33 | Y315-6/160 | Y355M-6/220 | Y355L1-6/280 | 7.1 |
| 412 | 980 | 2500 | 14 | 82 | 116.31 | Y315M3-6/132 | Y355S3-6/185 | Y355L-6/250 | 7 |
| 355 | 740 | 2400 | 11.4 | 82 | 90.92 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 6 |
| 367 | 740 | 2200 | 10.3 | 81 | 76.23 | Y315M2-8/90 | Y355S2-8/132 | Y355S4-8/160 | 5.4 |
| 384 | 740 | 2000 | 9.1 | 78 | 63.58 | Y315M1-8/75 | Y315M3-8/110 | Y355S2-8/132 | 5 |
| 402 | 740 | 1800 | 8 | 77 | 50.96 | Y315S-8/55 | Y315M1-8/75 | Y315M3-8/110 | 8 |
| 450-500-600 | 323 | 740 | 3300 | 16 | 86 | 167.3 | Y355M-8/185 | Y355L2-8/250 |
| 5.2 |
| 346 | 740 | 3100 | 14 | 85 | 139.14 | Y355S4-8/160 | Y355M4-8/200 |
| 5 |
| 376 | 740 | 2900 | 12 | 84 | 112.89 | Y355S2-8/132 | Y355S4-8/160 | Y355L1-8/220 | 5 |
| 408 | 740 | 2600 | 10 | 80 | 88.56 | Y315M3-8/110 | Y355S2-8/132 | Y355M-8/185 | 7.3 |
| 325 | 580 | 2600 | 9.8 | 85 | 81.69 | Y355S2-10/90 | Y355M-10/132 | Y355L-10/160 | 3.4 |
| 351 | 580 | 2500 | 8.6 | 85 | 68.93 | Y315M3-10/75 | Y355S4-10/110 | Y355L-10/160 | 3.1 |
| 363 | 580 | 2300 | 7.8 | 83 | 58.9 | Y315M3-10/75 | Y355S2-10/90 | Y355M-10/132 | 3 |
| 426 | 580 | 2200 | 6.1 | 81 | 45.15 | Y315M.V 10/55 | Y315M3-10/75 | Y355S2-10/90 | 5.8 |
| 500-500-650 | 253 | 740 | 3700 | 24 | 88 | 274.98 |
|
|
| 5 |
| 278 | 740 | 3400 | 20 | 87 | 212.99 |
|
|
| 5 |
| 318 | 740 | 3200 | 16 | 86 | 162.23 | Y355M-8/185 |
|
| 5 |
| 371 | 740 | 3000 | 12.5 | 85 | 120.22 | Y355S2-8/132 | Y355M-8/185 |
| 7 |
| 500-550-650 | 319 | 740 | 4500 | 20 | 86 | 285.18 |
|
|
| 5,5 |
| 345 | 740 | 4300 | 17.5 | 85 | 241.24 |
|
|
| 5.1 |
| 374 | 740 | 4000 | 15 | 83 | 196.99 |
|
|
| 5 |
| 417 | 740 | 3800 | 12.5 | 82 | 157.85 | Y355M-8/185 | Y355L2-8/250 |
| 7.6 |
| 317 | 580 | 3600 | 12.6 | 84 | 147.15 | Y355L-10/160 |
|
| 3.8 |
| 341 | 580 | 3400 | 11 | 84 | 121.33 | Y355M-10/132 |
|
| 3.4 |
| 型號 | 比轉速 | 轉速 r/min | 流量m3/h | 揚程M | 效率% | 軸功率Kw | 配用電機 | 汽蝕余量 |
| r = 1.00Specific gravity | r=1.35Specific gravity | r =1.84Specific gravity |
| 500-550-650 | 372 | 580 | 3200 | 9.4 | 83 | 98.76 | Y355S4-10/110 | Y355L-10/160 | Y355L-10/160 | 3.1 |
| 406 | 580 | 3000 | 8 | 81 | 80.74 | Y355S2-10/90 | Y355M-10/132 |
| 5.8 |
| 550-600-730 | 321 | 580 | 4800 | 15 | 87 | 225.52 |
|
|
| 5.2 |
| 332 | 580 | 4400 | 13,5 | 87 | 186.05 |
|
|
| 5 |
| 362 | 580 | 4100 | 11.5 | 85 | 151.16 | Y355L-10/160 |
|
| 4.9 |
| 407 | 580 | 3900 | 9.5 | 83 | 121.64 | Y355M-10/132 |
|
| 7.2 |
| 313 | 480 | 3900 | 10.5 | 83 | 134.45 |
|
|
| 3.5 |
| 342 | 480 | 3700 | 9 | 82 | 110.66 |
|
|
| 3.2 |
| 358 | 480 | 3400 | 8 | 81 | 91.51 |
|
|
| 2.9 |
| 406 | 480 | 3200 | 6.5 | 80 | 70.85 |
|
|
| 2.7 |
| 600-600-800 | 259 | 580 | 5200 | 21 | 88 | 338.15 |
|
|
| 5.6 |
| 298 | 580 | 5000 | 17 | 87 | 266.24 |
|
|
| 5.6 |
| 327 | 580 | 4500 | 14 | 85 | 201.97 |
|
|
| 5.6 |
| 383 | 580 | 4300 | 11 | 82 | 157.19 |
|
|
| 7.8 |
| 600-650-800 | 332 | 580 | 6200 | 17 | 88 | 326.38 |
|
|
| 6.2 |
| 353 | 580 | 5800 | 15 | 86 | 275.67 |
|
|
| 6 |
| 379 | 580 | 5400 | 13 | 83 | 230.48 |
|
|
| 5.8 |
| 432 | 580 | 5100 | 10.5 | 80 | 182.41 |
|
|
| 8 |
| 337 | 480 | 5200 | 11.5 | 83 | 196.33 |
|
|
| 4.3 |
| 363 | 480 | 4900 | 10 | 81 | 164.85 |
|
|
| 3.8 |
| 402 | 480 | 4700 | 8.5 | 79 | 137.8 |
|
|
| 3.7 |
| 450 | 480 | 4400 | 7 | 75 | 111.91 |
|
|
| 7 |
| 800-800-850 | 343 | 580 | 7200 | 18 | 85 | 415.49 |
|
|
| 6.5 |
| 373 | 580 | 6625 | 15.2 | 83 | 330.61 |
|
|
| 6.3 |
| 403 | 580 | 6120 | 13 | 81 | 267.66 |
|
|
| 6.1 |
| 429 | 580 | 5760 | 11.5 | 78 | 231.42 |
|
|
| 7 |
| 346 | 480 | 5980 | 12.2 | 85 | 233.89 |
|
|
| 5.5 |
| 377 | 480 | 5501 | 10.3 | 83 | 186.02 |
|
|
| 5.3 |
| 418 | 480 | 5083 | 8.5 | 81 | 145.35 |
|
|
| 0.1 |
| 433 | 480 | 4784 | 7.8 | 78 | 130.36 |
|
|
| 6 |
